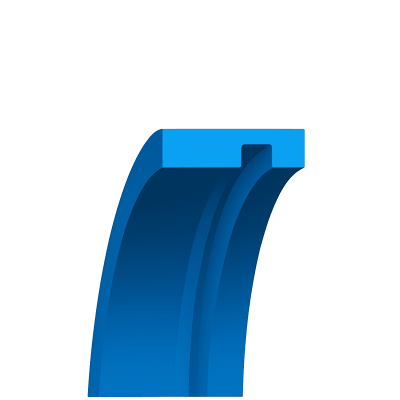

PTFE Bronze Wear Ring

The PTFE bronze wear ring is precision-machined to guide a rod or piston to avoid metal-on-metal contact in dry and lubricated applications. A gap is intentionally added to the wear ring to allow fluid flow to and from the seal gland and prevent pressure trap or hydrolock between the seal and wear ring. In the case where the cut ends of the ring touch due to the high thermal expansion of PTFE, an optional radius groove is added on both ends to continue to allow fluid flow.
