CANTED COIL SPRING ENERGIZED ROD SEAL

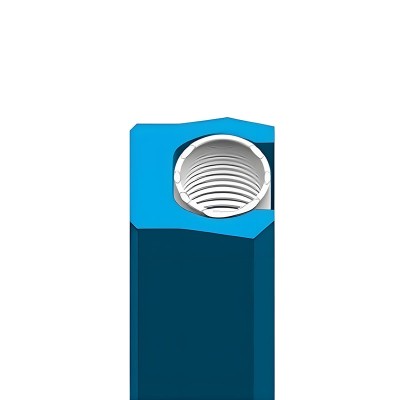

Canted Coil Spring Seals employ a specialty wound wire spring installed in a polymer jacket. The canted coil is unique in the sealing industry because of its semi-linear load curve. As an engineered loading device, canted coil springs display a very constant load over a large deflection range. This feature allows Canted Coil Spring Seals to operate in friction sensitive applications like HPLC, encoders and flap actuators with consistent performance. Seals used in battery operated devices utilize these seals – minimizing seal friction and optimizing battery life. On the other end of the spectrum, Canted Coil Spring Seals are used with heavy load springs for use in highly viscous media such as epoxies and urethanes.

STANDARD SEAL MATERIALS

Description

Color

Applications

Virgin PTFE

White

Light Duty / Static / Cryogenics

Carbon filled PTFE

Black

General Purpose

Virgin UHMWPE

Translucent White

Viscous Media / Water

Polyimide filled PTFE

Orange/Brown

High Sealabilty / Soft Hardware





STANDARD SPRING MATERIALS



Spring Material

Application

300 Series Stainless Steel

General purpose, standard spring material

Elgiloy

Improved performance and corrosion resistance

Hastelloy C276

Maximum chemical/corrosion resistance
