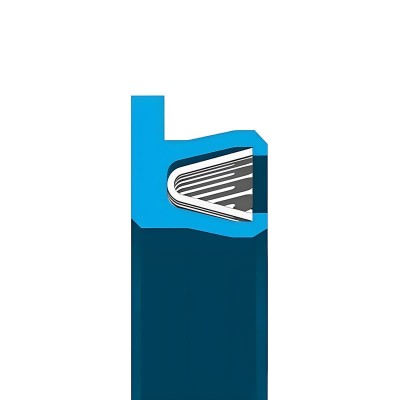

FLANGED CANTILEVER SPRING ENERGIZED SEAL

Flanged seals are a special class of radial seals with an added feature to help retain the seal under rotary forces. The flange is an extension of the heel of the seal, which locates in a counterbore of the housing. At assembly, the seal flange gets pinched in the housing providing a positive mechanical lock that keeps the seal stationary. Flanged seals are an excellent choice for equipment that can be designed with end plates. In these cases, assembly of a flanged seal is simple and provides a robust design as well as a level of redundant sealing on the static side of the gland. Process machinery that require a product to be contained (mixers, augers, spool valves) are good applications of this design.

STANDARD SEAL MATERIALS

Description

Color

Applications

Virgin PTFE

White

Light Duty / Static / Cryogenics

Carbon filled PTFE

Black

General Purpose

Virgin UHMWPE

Translucent White

Viscous Media / Water

Polyimide filled PTFE

Orange/Brown

High Sealabilty / Soft Hardware





STANDARD SPRING MATERIALS



Spring Material

Application

300 Series Stainless Steel

General purpose, standard spring material

Elgiloy

Improved performance and corrosion resistance

Hastelloy C276

Maximum chemical/corrosion resistance
