Heavy-Duty Piston Seal

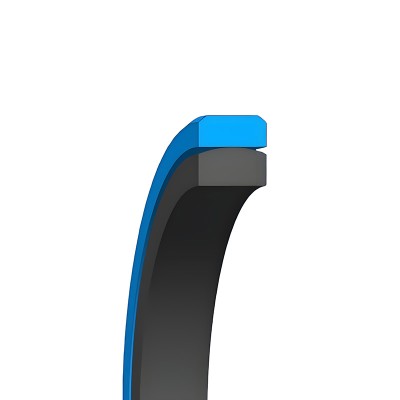

The P004 Series heavy duty piston seal is a low-friction design, consisting of a PTFE-filled seal and a profiled energizer. It is designed for large-diameter, double-acting cylinders in challenging applications, where high pressure and large extrusion gaps exist.
Item NO.: P004
Payment: T/T
Product Origin: China
Shipping Port: Shenzhen
Order(MOQ): 50
XHH Seals’ custom blended PTFE compounds provide ultra-low friction and high-speed performance with minimal wear.
The standard compounds are PTFE with Bronze filler, or PTFE filled with Glass-Moly.
The temperature range of the seal can be increased by selecting a FPM energizer in place of the standard NBR energizer.
BENEFITS
- Low friction
- Double acing applications
- High-temperature resistance
- Low wear
- Extrusion resistant
- Compatible with a wide range of media
- Available in diameters up to 1600 mm
APPLICATIONS
The P004 Series heavy-duty piston seal is ideal for high-pressure sealing applications, offering low-friction performance and double-acting operation.
Typical Applications:
- Rolling Mills
- Injection Molding Machines
- Hydraulic Presses
- Forging Presses
