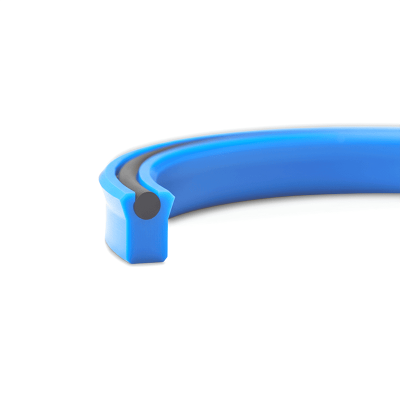

Energized Symmetrical Piston U-Cup
The P008 Series Energized Symmetrical Piston U-Cup is a popular and versatile design with a wide range of applications. The design features a primary sealing material that is further energized by an elastomeric element, frequently an O-ring. This allows a high sealing force to be created at the sealing lips or allows the use of seal materials that might otherwise have insufficient compression set resistance. This versatility allows this seal to be used across many markets. Manufactured in a variety of materials and sizes from 6 mm up to 1600 mm in standard or custom diameters.
Item NO.: P008
Payment: T/T
Product Origin: China
Shipping Port: Shenzhen
Order(MOQ): 50
The P008 Series Energized Symmetrical Piston U-Cup features high-grade polyurethane.
Standard materials are machined H-PU, available up to 1600 mm in diameter, and injection-molded TPU.
To suit a variety of applications, the series is also available in NBR, H-NBR, EPDM and high temperature-resistant FPM.
BENEFITS
- High pressure capability and wide temperature range
- Excellent fluid compatibility including water-based fluids（H-PU）
- Exceptional abrasion resistance
- Available in diameters up to 1600 mm
APPLICATIONS
The P008 Series Energized Symmetrical Piston U-Cup is ideal for applications requiring high sealing forces.
This seal is available in a wide range of materials to cover applications where specialty fluids are present.
Often used in conjunction with an anti-extrusion ring particularly when seal material has insufficient extrusion resistance.
The seal is a symmetrical design allowing use as either for dynamic OD or ID sealing.
Typical Applications:
- Oil Gas
- Mobile Hydraulics
- Hydraulic Cylinder Rebuild
- Agricultural Hydraulics
- Construction Equipment
- Hydraulic Presses
- Injection Molding Machines
