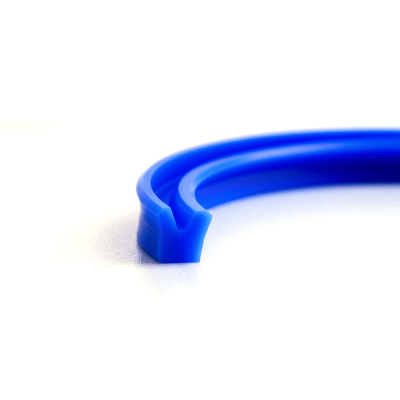

Symmetrical U-Cup

The U001 Series Symmetrical Piston U-cup is a popular System Seals design used in standard duty applications. Its symmetrical design creates equal seal force across both seal lips. This gives the seal the capability to function as both a piston seal and rod seal or alternatively to seal dynamically on both the outside and inside diameters. This feature is often appreciated when reduced product inventories are desired. Manufactured in a variety of materials and sizes from 6 mm to 1600 mm in standard or custom diameters.

  • Item NO.:                             U001

  • Payment:                               T/T

  • Product Origin:                   China

  • Shipping Port:              Shenzhen

  • Order(MOQ):                         50

The U001 Series Symmetrical Piston U-cup seal features high-grade polyurethane.

Standard materials are machined H-PU, available up to 1600 mm in diameter, and injection-molded TPU.

To suit a variety of applications, the series is also available in NBR, H-NBR, EPDM and high temperature-resistant FPM.

BENEFITS

  • High pressure capability and wide temperature range
  • Excellent fluid compatibility including water-based fluids（H-PU）
  • Exceptional abrasion resistance
  • Highly extrusion resistant
  • Available in diameters up to 1600 mm

APPLICATIONS

The U001 Symmetrical Piston Series U-cup, due to its versatility as both a piston and rod seal, can be used in a wide variety of applications. Recommended where dynamic sealing action is required simultaneously on the inside and outside diameters. Examples are often encountered in specialty sensors, bolt tension equipment and hollow cylinders.

Typical Applications:

  • Mobile Hydraulics
  • Hydraulic Cylinder Rebuild
  • Agricultural Hydraulics
  • Construction Equipment
  • Hydraulic Presses
  • Injection Molding Machines
