PTFE Rotary Rod Seal

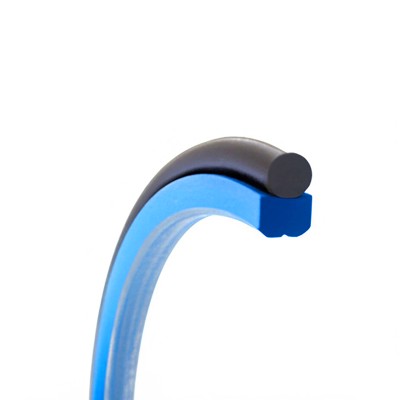

The S001 series PTFE rotary rod seal is a low-friction design, consisting of a PTFE-filled seal and an O-Ring energizer. It is designed for double-acting cylinders in challenging applications, where low friction and high wear resistance are needed.
Item NO.: S001
Payment: T/T
Product Origin: China
Shipping Port: Shenzhen
Order(MOQ): 50
The S001 series rotary seal features custom blended PTFE-filled compounds providing ultra-low friction and high-speed performance with minimal wear.
The standard compounds are PTFE with Bronze filler, or PTFE filled with Glass-Moly + NBR.
The temperature range of the seal can be increased by selecting an FPM O-Ring in place of the standard NBR O-Ring.
BENEFITS
- Low friction
- Double-acting applications
- High-temperature resistance
- Low wear
- Extrusion resistant
- Compatible with a wide range of media
- Available in diameters up to 1600 mm
- High abrasion resistance
APPLICATIONS
The S001 series rotary seal is ideal for high-pressure sealing applications, offering low-friction performance and double-acting operation.
Typical Applications:
- Rolling Mills
- Hydraulic Motors
- Agricultural Hydraulics
- Mobile Hydraulics
- Wind Energy
- High Pressure Valve Stems
- Rotary Actuators
- Rotary Swivels
