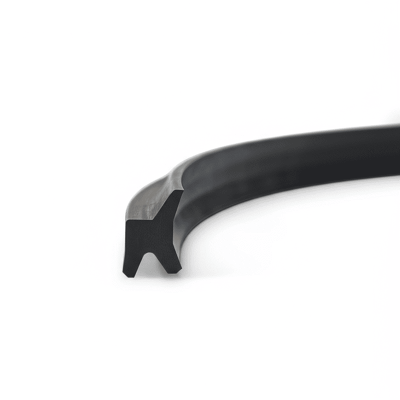

Double-Acting Snap-In Wiper
The W007 Series Double-Acting Snap-In Wiper is a popular upgrade to the traditional single-lip wiper designs. It offers enhanced performance and can be easily retrofitted into existing wiper grooves. The double acting design ensures maximum resistance to contamination, while working in tandem with the rod seal to maximize performance. The internal wiping lip is notched to prevent pressure trapping between the wiper and the rod seal. The wiper is designed to exclude and protect the hydraulic cylinder in the harshest conditions.
Item NO.: W007
Payment: T/T
Product Origin: China
Shipping Port: Shenzhen
Order(MOQ): 50
The W007 Series Double-Acting Wiper features high-grade polyurethane.
Standard materials are machined H-PU, available up to 1600 mm in diameter and injection-molded TPU.
To suit a variety of applications the series is also available in NBR, H-NBR, EPDM and high temperature-resistant FPM.
BENEFITS
- Internal notches prevent pressure trapping
- Designed to fit securely in the groove
- Long service life
- Easy snap-in installation
- Available in large diameter up to 1600 mm
APPLICATIONS
The W007 Series Wiper is particularly suited for operating in contaminated or outside environments.
Typical Applications:
- Steel and Aluminum processing
- Mobile hydraulics
- Agricultural
- Standard hydraulic cylinders
